Cell Phone Detector Project For Students

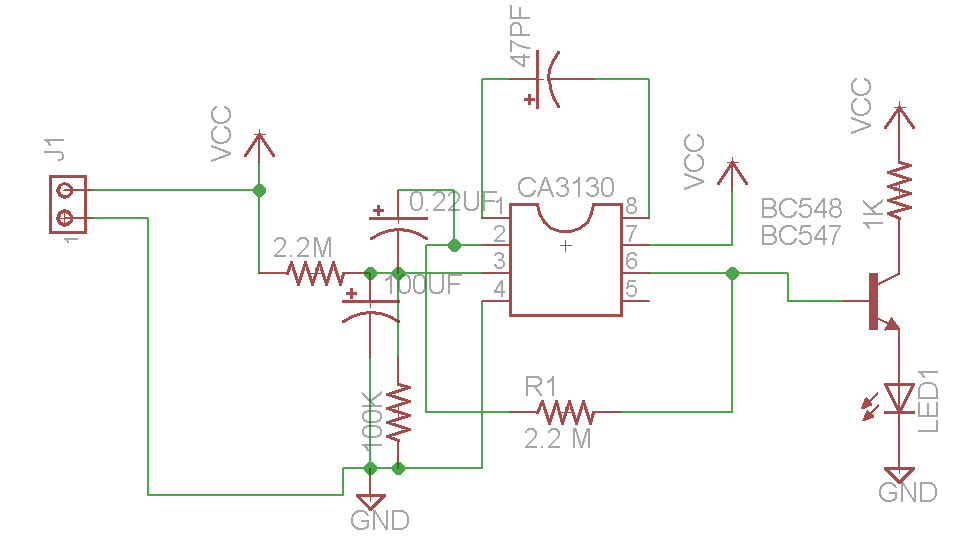

Circuit Diagram :-







Circuit Layout :-







Components List :-

  • 3x3 inch copper clad PCB - 1 Piece
  • CA3130 IC - 1 Piece
  • BC 548 Transistor - 1 Piece
  • 5mm Led - 1 Piece
  • 0.22uf capacitor - 1 Piece
  • 100 uf capacitor - 1 piece
  • 47 pf capacitor - 1 Piece
  • 9v Battery with cap - 1 Piece
  • 1x2 green terminal - 1 Piece
  • 100 kilo ohm resistor - 1 Piece
  • 2.2 Mega ohm resistor - 2 Piece
  • 1 kilo ohm resistor - 1 Piece



Working:-

There is natural electromagnetic field around the capacitor caused by 50Hz electric wiring. When the mobile fan radiates high frequency radiation, capacitor oscillates and release energy in the inputs of IC. This oscillation is indicating by Flashing of LED.
